Independent design and manufacture, autonomous intellectual property rights. Design and Manufacture in Chengdu, China.
The first PMA for aircraft external electronics/electrical in China civil aviation.

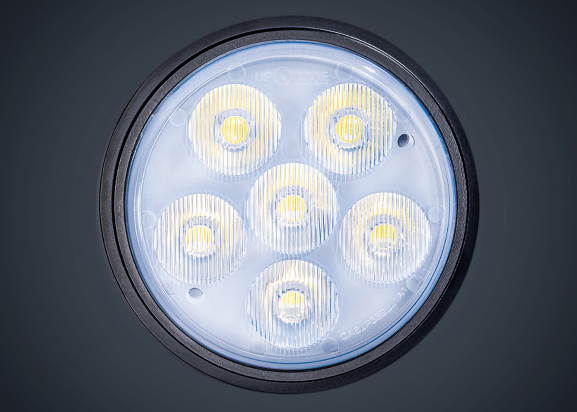

PAR36 LED LIGHT

TURN OFF / LOGO / TAXI

Part Number
UGCA-ELP36A28
Replaceable OEM P/N
4626
A/C Type and Location (Civil Aviation)

A320 TURN LT/LOGO LT

A330 TURN LT

Product Specifications

Size
D=4.37in,H=2.13in
Nominal luminance
25,000 cd
Weight
420g
Color Temp.
6,000K±500K
Voltage
AC28V/400Hz
Operating Temp.
-55℃—70℃
Current
2.86A@28V /400Hz
Height
50,000ft The normal work
Power
80W
Lifetime
30,000H

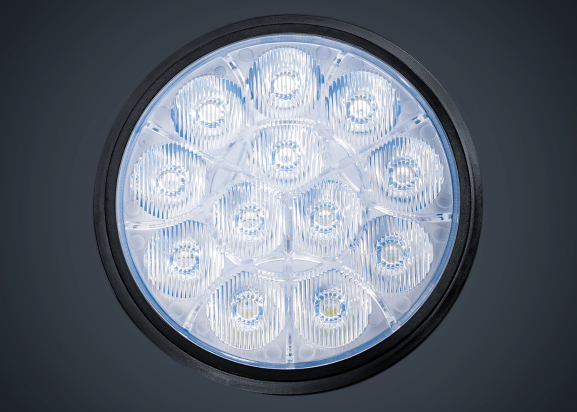

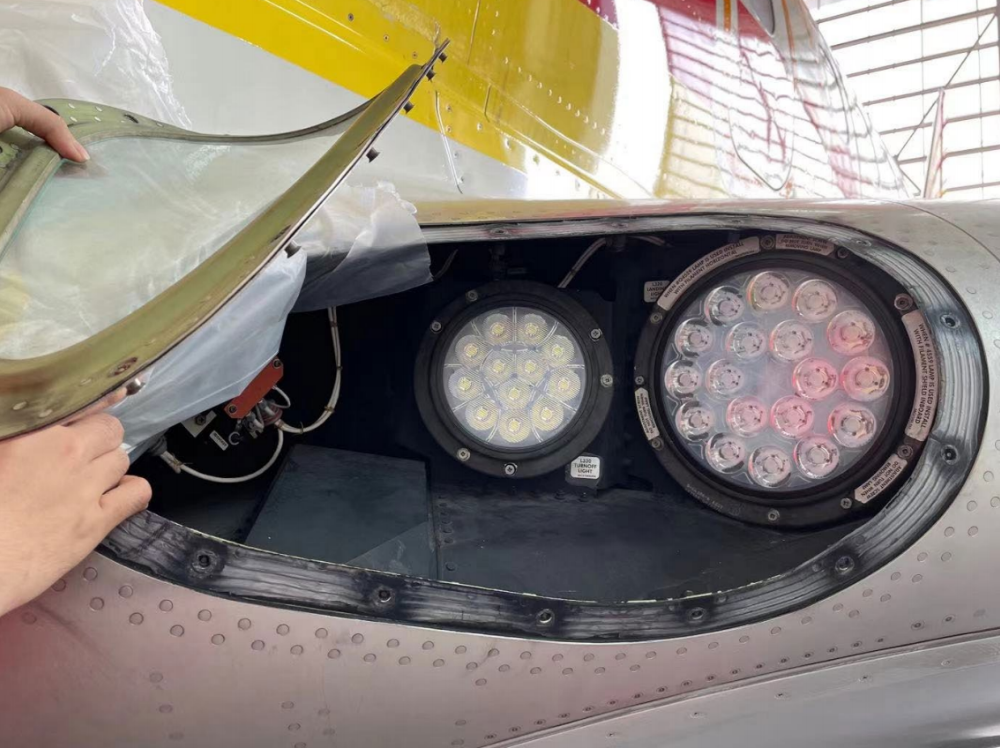

PAR46 LED LIGHT

TURN OFF / TAXI / LANDING

Part Number
UGCA-ELP46A28
Replaceable OEM P/N
4551/4554/Q4454
A/C Type and Location (Civil Aviation)

B737 TURN LT/TAXI LT

A320 TAXI LT

B777 Turn LT

Product Specifications

Size
D=5.62in,H=2.26in
Nominal luminance
90,000 cd
Weight
800g
Color Temp.
6,000K±500K
Voltage
AC28V/400Hz
Operating Temp.
-55℃—70℃
Current
5.90A@28V /400Hz
Height
50,000ft The normal work
Power
165W
Lifetime
30,000H

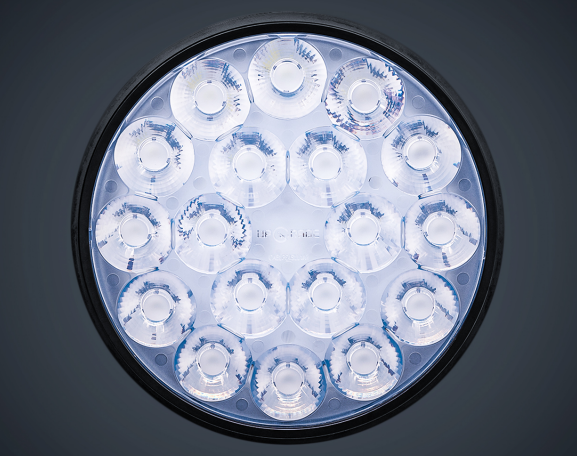

PAR64 LED LIGHT

LANDING / TAXI / TAKE OFF

Part Number
UGCA-ELP64A28
Replaceable OEM P/N
Q4559X/Q4559/Q4457
A/C Type and Location (Civil Aviation)

B737 LANDING LT

A320 TAKE OFF LT/LANDING LT

A330 TAKE OFF AND TAXI LT/LANDING LT

B777 LANDING LT

Product Specifications

Size
D=8in , H=2.93in
Nominal luminance
765,000 cd
Weight
1,550g
Color Temp.
6000K±500K
Voltage
AC28V/400Hz
Operating Temp.
-55℃—70℃
Current
8.75A@28V /400Hz
Height
50,000ft The normal work
Power
245W
Lifetime
30,000H

Designed according to SAE693D technology standard and verified by 46 tests of RTCA DO-160G:

1:Ground resistance to low temperature test and Low temperature short-time working test (DO160G-4.5.1)

2:Low temperature working test (DO160G-4.5.2)

3:Ground resistance to high temperature test and high temperature short-time working test (DO160G-4.5.3)

4:High temperature working test (DO160G-4.5.4))

5:Height test (DO160G-4.6.1)

6:Temperature change test (DO160G-5.0)

7:Humid heat test (DO160G-6.0)

8:Work impact(DO160G-7.2)

9:Vibration test(DO160G-8.0)

10:Waterproof(DO160G-10.0)

11:Sand dust(DO160G-12.0)

12:Blowing dust test

13:Blowing sand test

14:Salt fog(DO160G-14.0)

15:Magnetic influence(DO160G-15.0)

16:The power input(DO160G-16.0)

17:Voltage and frequency test under normal operating conditions(DO160G-16.5.1.1)

18:Voltage modulation test(DO160G-16.5.1.2)

19:Frequency modulation test(DO160G-16.5.1.3)

20:Transient power interruption test (AC)(DO160G-16.5.1.4)

21:Normal surge voltage test (AC)(DO160G-16.5.1.5.1)

22:Normal frequency transient test(DO160G-16.5.1.5.2)

23:Voltage DC content test(DO160G-16.5.1.7)

24:Voltage distortion test(DO160G-16.5.1.8)

25:Steady-state (AC) voltage and frequency test under abnormal operating conditions(DO160G-16.5.2.1)

26:Instantaneous undervoltage working test(DO160G-16.5.2.2)

27:Abnormal surge voltage (AC)(DO160G-16.5.2.3.1)

28:Abnormal frequency transient (AC)(DO160G-16.5.2.3.2)

29:Voltage spike test(DO160G-17.0)

30:Power cord audio frequency conduction sensitivity test(DO160G-18.0)

31:Induction signal sensitivity test(DO160G-19.0)

32:The induced magnetic field of the device

33:The electric field is induced on the equipment

34:Peak sensitivity of interconnect cables

35:Rf sensitivity test (conduction and radiation)(DO160G-20.0)

36:Conduction sensitivity (CS) test

37:Radiation sensitivity (RS) test

38:Rf energy emission (DO160G-21.0):

39:Radio frequency conduction emission

40:Radio frequency emission

41:Lightning sensitivity(DO160G-22.0)

42:Needle injection test

43:Cable induction test

44:Ice(DO160G-24.0)

45:Electrostatic discharge (ESD) test(DO160G-25.0)

46:Direct lightning test
