PRODUCT OVERVIEW

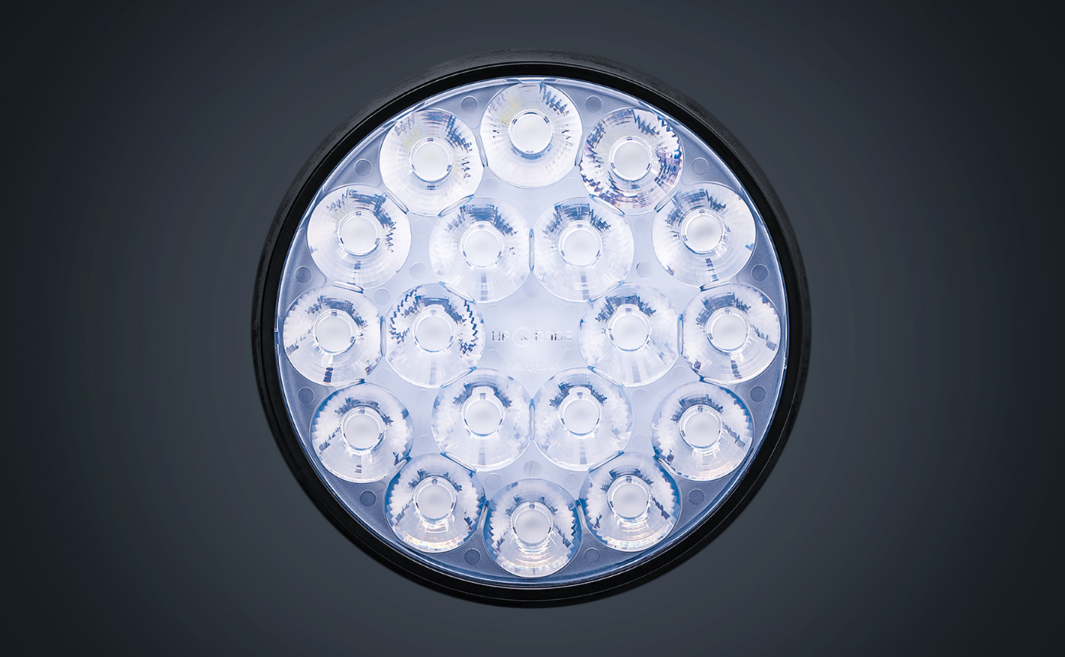

Chengdu Upgrade and aviation technology development co., LTD launched UGCA - ELP64A28PAR64ED bulbs to replace GEQ4559X/Q4559/Q4557PAR64 halogen bulb, lamp can be used for the plane to take off and landing lights. Ugca-elp64a28 consumes far less power than alternative products such as mercury arc lamps, high-intensity discharge lamps or halogen lamps.

UGCA-ELP64A28 built-in temperature control system can avoid the use of halogen bulbs in high temperature radiation caused by aircraft structure damage; At the same time, it also has intelligent fault detection function. When any of the LED failure, the whole light will stop working. This function can timely remind maintenance personnel to replace the faulty bulb and improve maintainability.

UGCA-ELP64A28 Bulb Main Components

1
Wiring terminal. Three terminals, two of which provide the electrical connection between the bulb and the luminaire, and one for grounding
2
Aluminum shell. Aluminum shell for the installation of power components and heat dissipation
3
Power components. The power supply component converts the AC28V input voltage into the operating voltage of the LED board and detects lamp bead failures
4
LED light board. Provide continuous light output
5
Sealing ring. Ensure the waterproof performance of the lamp
6
Optical lenses. Ensure the light Angle
7
Front cover of the shell. Components for fixing the lens

Specifications

Part Number
UGCA-ELP64A28
Size
D=8in(203mm) H=2.93in(74.44mm)
Replaceable OEM P/N
GE Q4559X/Q4559 /Q4557
Weight
1550g
Light Angle
H=12° V=12°(-10% light intensity)
Height
50000ft(15000m) works normally
Nominal Luminance
765000 cd
Operating Temp.
-55—70℃
Color Temp.
6000K±500K
Storage Temp.
18℃—25℃
Voltage
AC28V/400Hz
Lifetime
30000H
Power
245W
Number of Lights
18PCS
Electric Current
8.75A@28V/400Hz
Fault Detection
Yes (the whole light will stop working when any LED failure)
( Note: the following specifications only represent the current specifications of this product. Chengdu Upgrade Aviation Technology Development Co., Ltd. reserves the right to change the specifications without prior notice. )
