SOLUTIONS Commercial Aviation PAR 46

PRODUCT OVERVIEW

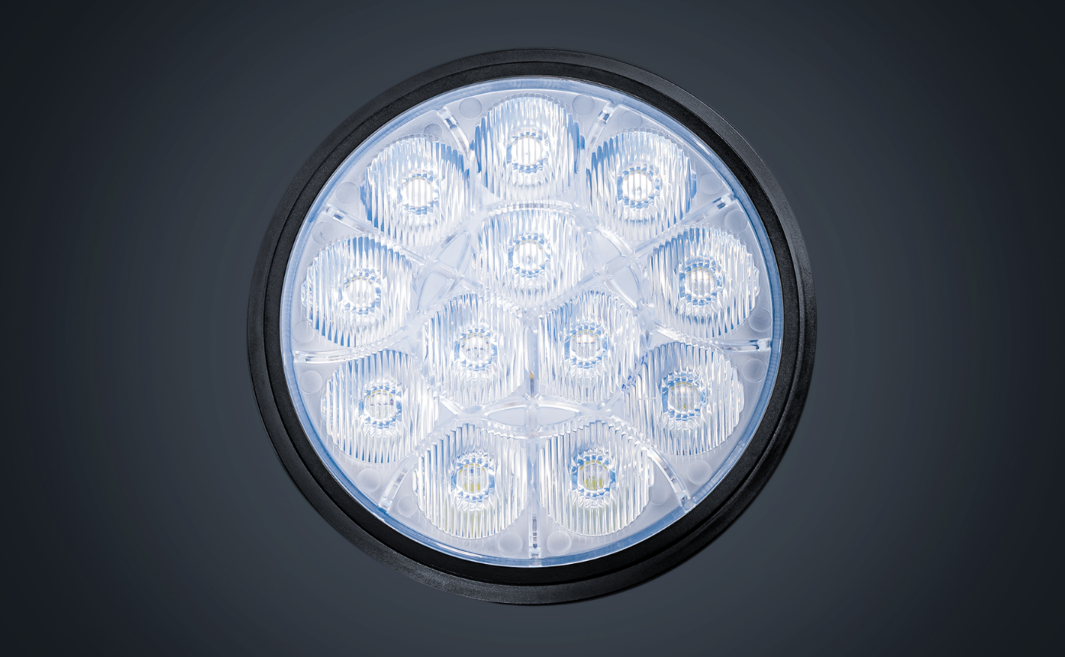

UGCA-ELP46A28 PAR46 LED light launched by Chengdu Upgrade and Aviation Technology Development Co., LTD is used to replace GE4551/4554/Q4554PAR46 halogen bulb, which can be used for turning lights and taxi lights of aircraft. Ugca-elp46a28 consumes far less power than alternative products such as mercury arc lamps, high-intensity discharge lamps or halogen lamps.

UGCA-ELP46A28 built-in temperature control system, can avoid the use of halogen bulbs in high temperature radiation caused by aircraft structure damage; At the same time, it also has intelligent fault detection function. When any of the LED failure, the whole light will stop working. This function can timely remind maintenance personnel to replace the faulty bulb and improve maintainability.

UGCA-ELP46A28 Bulb Main Components

1
Wiring terminal. Two wiring terminals to provide electrical connection between the lamp and the luminaire
2
Aluminum shell. Aluminum shell for the installation of power components and heat dissipation
3
Power components. The power supply component converts the AC28V input voltage into the operating voltage of the LED board and detects lamp bead failures
4
LED light board. Provide continuous light output
5
Sealing ring. Ensure the waterproof performance of the lamp
6
Optical lenses. Ensure the light Angle
7
Front cover of the shell. Components for fixing the lens

Specifications

Part Number
UGCA-ELP46A28
Size
D=5.62in(142.7mm) H=2.26in(57.3mm)
Replaceable OEM P/N
GE 4551/4554/Q4554
Weight
800g
Light Angle
H=50° V=16°(-10% light intensity)
Height
50000ft(15000m) works normally
Nominal Luminance
90000 cd
Operating Temp.
-55—70℃
Color Temp.
6000K±500K
Storage Temp.
18℃—25℃
Voltage
AC28V/400Hz
Lifetime
30000H
Power
165W
Number of Lights
12PCS
Electric Current
5.9A@28V/400Hz
Fault Detection
Yes (the whole light will stop working when any LED failure)
( Note: the following specifications only represent the current specifications of this product. Chengdu Upgrade Aviation Technology Development Co., Ltd. reserves the right to change the specifications without prior notice. )
