PRODUCT OVERVIEW

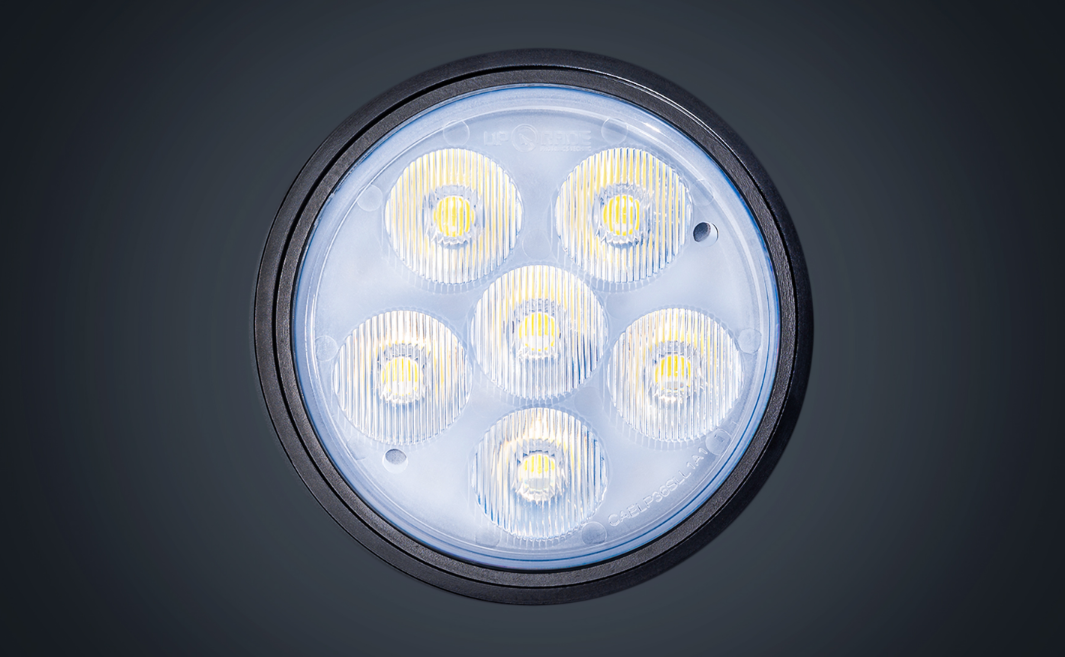

UGCA-ELP36A28 PAR36 LED light launched by Chengdu Upgrade Aviation Technology Development Co., LTD. UGCA-ELP36A28 PAR36 LED light is used to replace GE4626 PAR36 halogen bulb, which can be used for turning lights, taxi lights and LOGO lights of aircraft. UGCA-ELP36A28 consumes far less power than alternative products such as mercury arc lamps, high-intensity discharge lamps or halogen lamps.

UGCA-ELP36A28 built-in temperature control system can avoid the use of halogen bulbs when high temperature radiation damage to the aircraft structure; At the same time, it also has intelligent fault detection function. When any of the LED failure, the whole light will stop working. This function can timely remind maintenance personnel to replace the faulty bulb and improve maintainability.

UGCA-ELP36A28 Bulb Main Components

1
Wiring terminal. Two wiring terminals to provide electrical connection between the lamp and luminaire
2
Aluminum shell. Aluminum shell for the installation of power components and heat dissipation
3
Power components. The power supply component converts the AC28V input voltage into the operating voltage of the LED board and detects lamp bead failures
4
LED light board. Provide continuous light output
5
Sealing ring. Ensure the waterproof performance of the lamp
6
Optical lenses. Ensure the light Angle
7
Front cover of the shell. Components for fixing the lens

Specifications

Part Number
UGCA-ELP36A28
Size
D=4.37in(111mm) H=2.13in(54mm)
Replaceable OEM P/N
GE 4626 (28V/150W)
Weight
420g
Light Angle
H=40° V=9°(-10% light intensity)
Height
50000ft(15000m) works normally
Nominal Luminance
25000 cd
Operating Temp.
-55—70℃
Color Temp.
6000K±500K
Storage Temp.
18℃—25℃
Voltage
AC28V/400Hz
Lifetime
30000H
Power
80W
Number of Lights
6PCS
Electric Current
2.86A@28V/400Hz
Fault Detection
Yes (the whole light will stop working when any LED failure)
( Note: the following specifications only represent the current specifications of this product. Chengdu Upgrade Aviation Technology Development Co., Ltd. reserves the right to change the specifications without prior notice. )
